IMER Mix 200 | Forced Action Mixer | Resin Mixer 200L

Applications

Compact • High Capacity • Road Towable

The IMER MIX 120 Plus is a powerful forced action mixer designed for high output with minimal effort. Its compact size and road tires make it easy to move and position, while the large drum capacity is perfect for mixing bagged, premixed or predosed materials.

Key Features:

• Large capacity in a compact frame for maximum efficiency on-site
• I-DUST loading grate (standard) helps reduce airborne dust during mixing
• Proven gearbox—reliable and tested, originally developed for the MIX 120 Plus
• Adjustable legs (3 positions) for comfortable loading and unloading
• Easy belt tensioning with simple access for maintenance
• Optional light bar kit for road tow approval
• Compatible with the IMER Step 120 pump to create a full mixing and pumping unit—ideal for concrete repair products



Standard Equipment

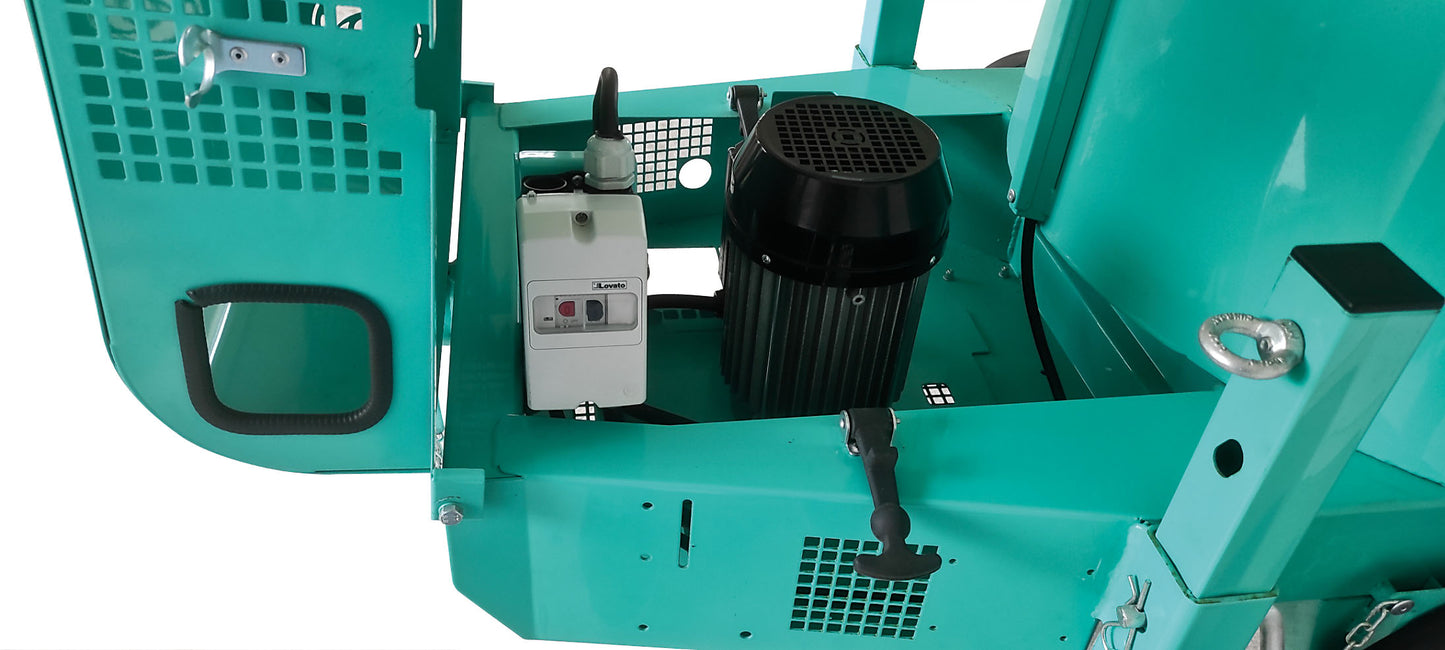

• Single-phase 2.5 kW 2P 230V / 50Hz electric motor or Honda petrol engine GXV160 3.2 kW (2 kW cont.)
• Magnetothermic switch with IP55 minimum voltage coil and IP67 plug (electric version)
• I-DUST grate with connector tube for vacuum cleaner and bag breaker blade
• Electric safety grate opening
• Mixing paddles adjustable in height up to 18 mm
• Lifting hooks positioned on 4 sides and forklift guides
• Loading / unloading adjustable height in 3 positions 550/680/810 mm
• Oscillating discharge outlet to avoid clogging and facilitate cleaning
• Bonnet and hood fastening with silent and easy-to-use Valpa elastic closures
• Pneumatic wheels and axle with independent elastic suspension for excellent mobility on the building site
• Version approved for road towing (with optional light bar kit added)



Optional Accessories

• Light bar kit (required for road towing)
• Rubber paddles kit
• Outlet slide kit for loading on Step 120

Suitable for Mixing

• • Premixed or traditional cementitious screed, also with addition of fibers and / or additives
• Pre-dosed or traditional lightened screed, with expanded clay with grain size > 20 mm • Colored rubber granulate for anti-trauma flooring
• Self-levelling anhydride / cement based screeds
• Thermal insulating cork or polystyrene based screeds • Cement / lime / gypsum based plasters
• Fiber-reinforced structural plasters also with the addition of additives
• Restorative plasters
• Traditional plasters
• Binders / mortars for injections
• Polystyrene or cork based insulating plasters
• Fiber-reinforced mortars for reinforcement
• Premixed / traditional masonry mortars • Filling concrete with 6 mm grain size
• Concrete for continuous draining flooring
• Mortars for heat protection
• Fireproofing





12 Months Manufacturers Warranty
Call our Sales Team on 01902 498915 for more information
