MABER MBC 2300/150 Transport Platform

MABER MBC 2300/150 Transport Platform

Transport platforms for the moving of persons and materials among defined places, with capacities of up to 5,000kg.

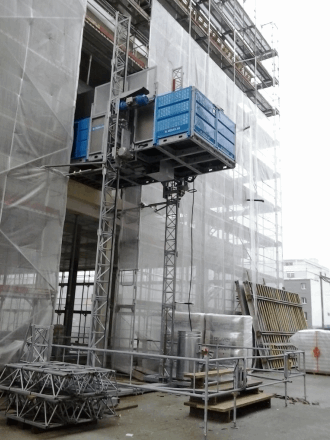

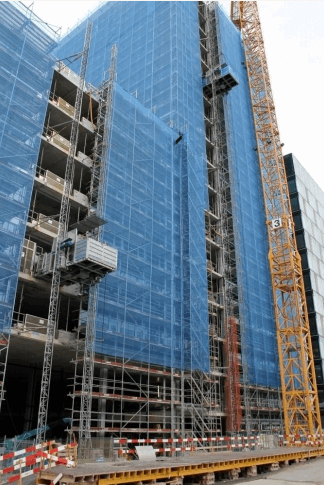

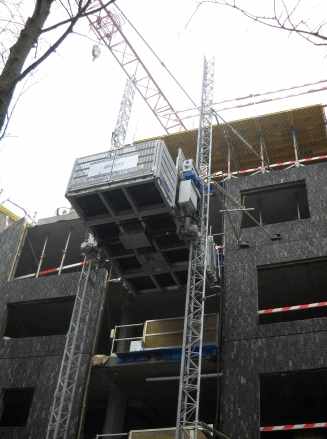

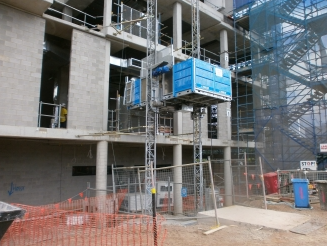

Modular, twin-mast transport platform for persons and materials, maximum capacity of 2,200kg and maximum dimensions 2.2 x 4.2M, for the transportation of all the materials required to build or restructure buildings. Can replace a tower crane.



Machine in conformity to European Regulation EN 16719:2018



Technical Features:-

Maximum Anchored Height: 150M

Capacity: 2300kg

Maximum Distance Between Anchorage Points: 6M

Modular Width: The size can vary depending on the requirement

Height of Cage: 1200mm

Voltage Three-Phase: 400V-50Hz

Engine Power: 2 x 9,2kW

Lifting Speed: 12m/24min

Patented Mechanical Emergency Brake

Overload Control
