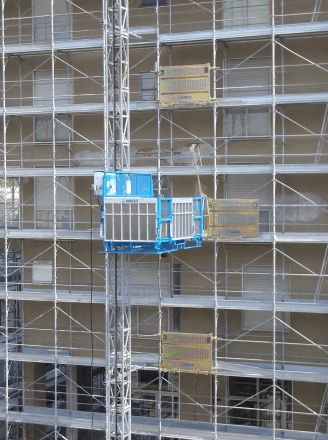

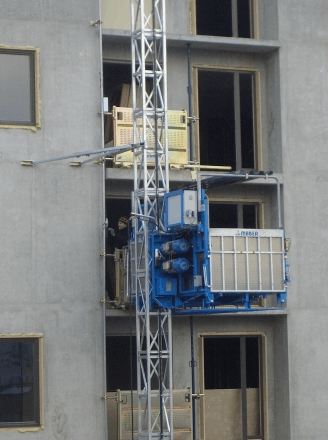

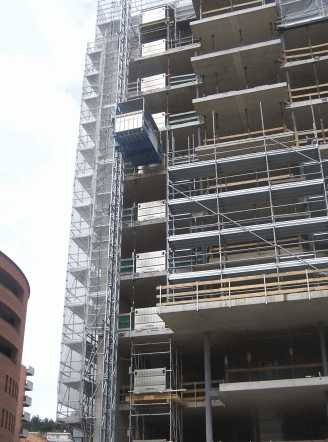

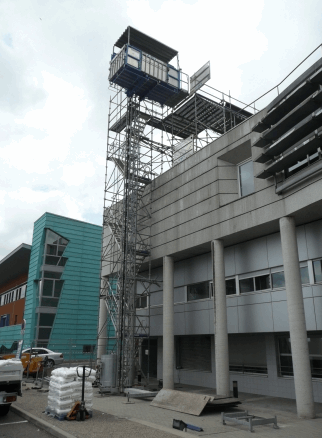

MABER MBC 2000/150 Transport Platform

MABER MBC 2000/150 Transport Platform

Builders' Hoists For Goods With Accessible Platforms

Transport platform for persons and materials with a capacity of 1,500kg. Force limiting device included, double lifting speed 12/24 or 12/32 (m/min).

Thanks to the dimensions of the platform 1500 x 3200mm, it is possible to transport plasterboards. It is also, like all MABER Transportation Platforms, equipped with an anti-crushing system.

Also available in the version with a VFD (Variable Frequency Drive) for smooth start and stop; reducing power consumption.

Machine in conformity to European Regulation EN 16719:2018


Technical Features:-

Maximum Anchored Weight: 150M

Capacity: 2000kg

Maximum Distance Between Anchorage Points: 6M

Width of Cage: 1500mm

Length of Cage: 3200mm

Height of Cage: 1100mm

Voltage Three-Phase: 400V/50HZ

Engine Power: 2 x 9.2kW

Lifting Speed: 30m/min

Patented Mechanical Emergency Brake
