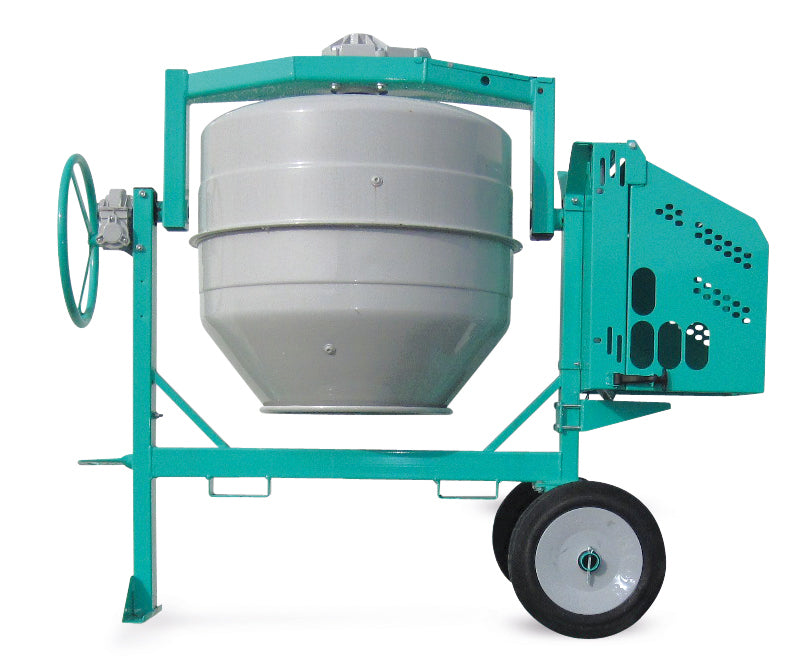

Concrete Mixer | IMER Syntesi 190L | Electric or Petrol

Drum Capacity: 190/~160L

Drum Diameter: 702mm

Wheel Dimensions: 295x54mm

Electric Power Supply: 230V/50Hz Sph

Electric Motor Power Rate: 4.2kW

Running Current 230V: 5A

Petrol Engine Power: 4kW

Electric Motor/Petrol Engine SPL in Operators Position: 72/85 dB(A)

Electric Motor/Petrol Engine Machine Weight: 106/125kg

Machine Dimensions with Electric Motor (w/l/h): 793/1465/1334mm

Machine Dimensions with Petrol Engine (w/l/h): 793/1790/1334mm

• Single-phase 230V/50Hz motor (all models) - IP55 switch and no-volt coil
• Version with Subaru Robin EX 17DU / SP170 petrol engine 4.2 kW (Syntesi 190, 250, 350), unleaded petrol feed
• Transmission system with high resistance belt and steel gears in oil bath that are maintenance-free
• Movement towbar

Designed and built to solve the typical problems of traditional concrete mixers. The transmission system inserted in the arm and the convenient worm screw tilting system make it noiseless and lightweight, and at the same time sturdy and reliable.
